72 Heat Sink Aluminium for Projector Led Lens

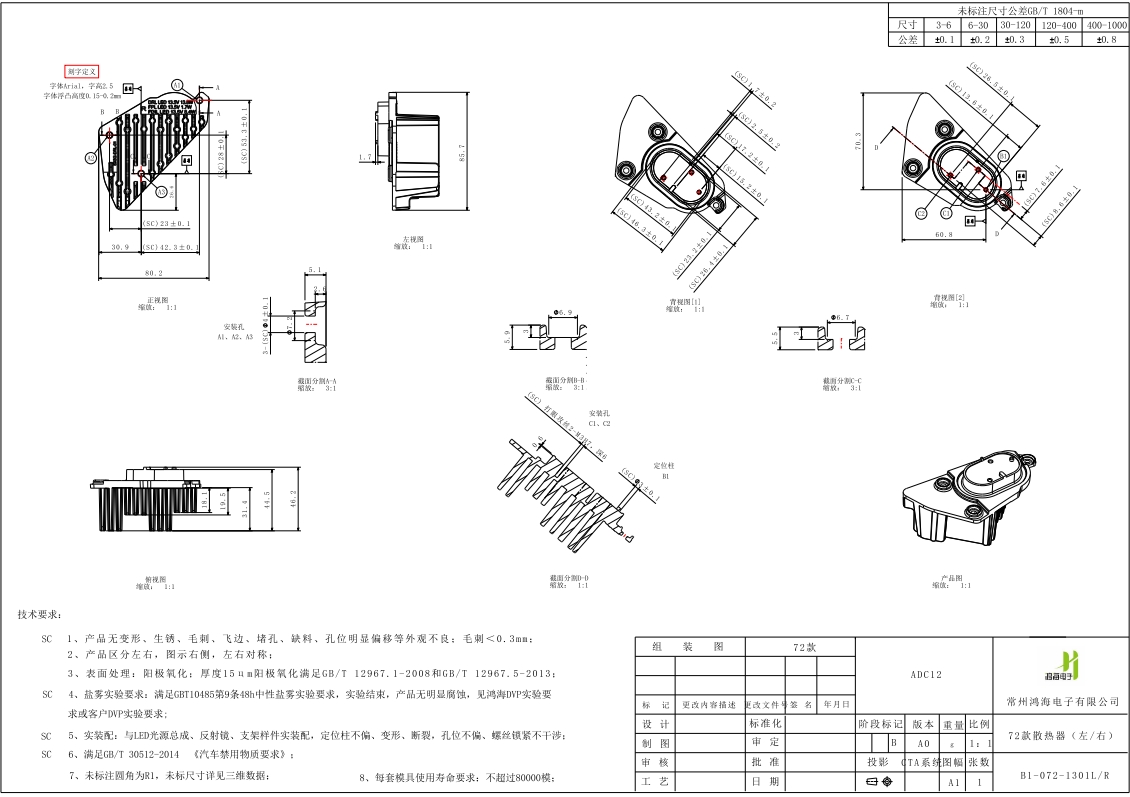

1. The product has no appearance defects such as deformation, rust, burrs, flash, hole blockage, material shortage, or obvious hole position deviation.

Burrs <0.3ma;

2. The products are divided into left and right. The right side of the illustration is symmetrical on both sides. \ n3. Surface treatment: Anodizing: Thickness 15 4 n Anodizing meets the requirements of GB/T 12967.1-2008 and GB/T12967.5-2013. \ n4. Salt spray test requirements:

It meets the 48-hour neutral salt spray test requirements stipulated in Article 9 of GBT10485. After the test, the product shows no obvious corrosion, as per the requirements of the Hon Hai DVP test or the customer's DVP test. 5. Actual assembly:

6. It is accurately assembled with the LED light source assembly, reflector and bracket sample. The positioning column is not skewed, deformed or broken, the hole position is not skewed, and the screw locking does not interfere. \ n7. It meets the requirements of GB/T 30512-2014 "Prohibited Substances Requirements for Automobiles". \ n8. The fillet is not marked as RI, and the unmarked dimensions are detailed in the three-dimensional data. \ n7. The service life requirements of each set of molds.

No more than 80,000 modes
