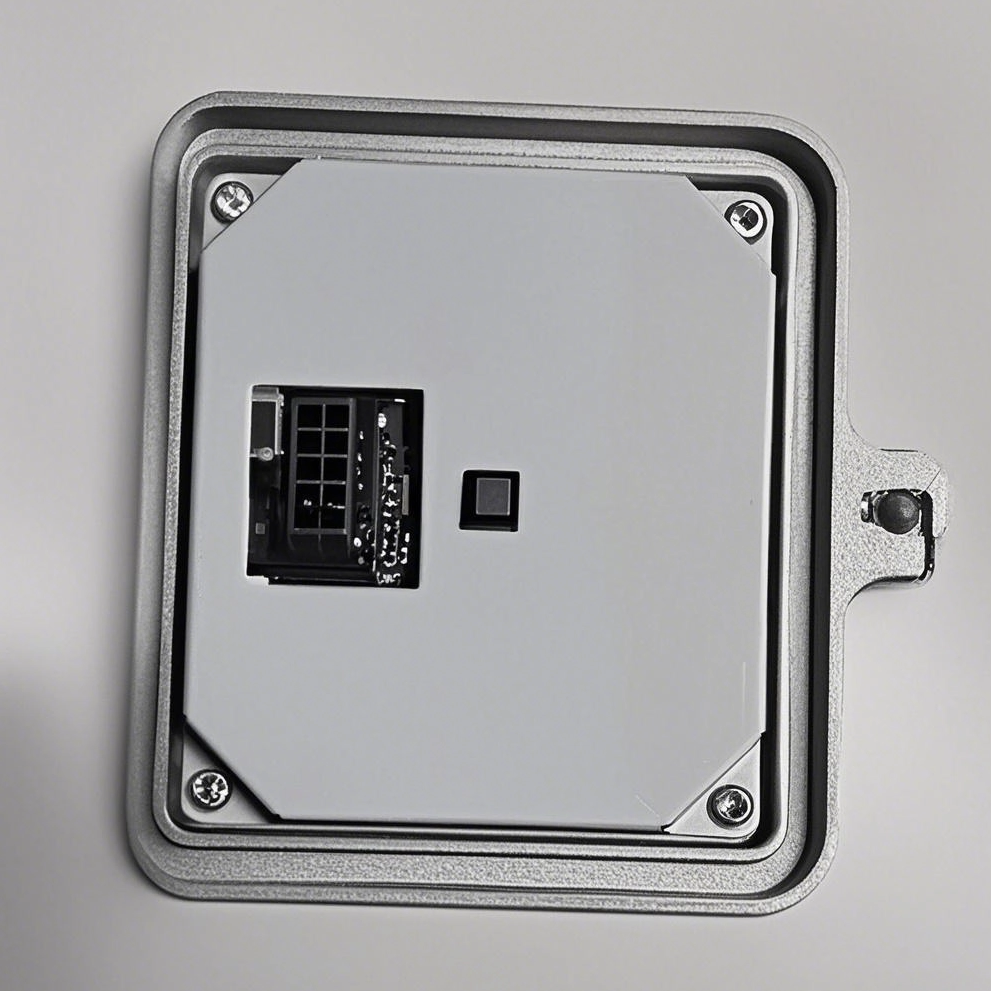

W1-131/132-11T-1 LED Projector Lens Controller

Parameter information
Rated Voltage	13.5V
Output Current	Low beam1.9±10%A Low beam and high beam:3.1±10%A
Maximum Power	42W

Weight	170.3g

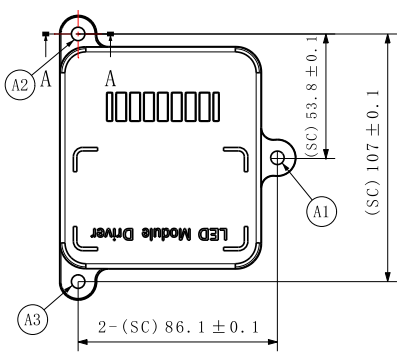

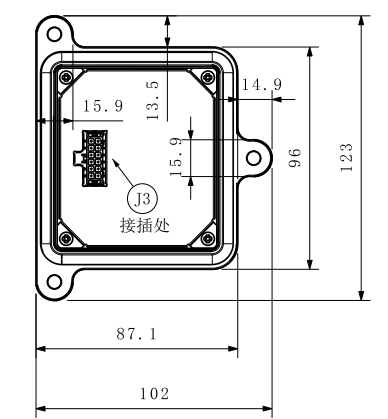

Size	12310215.2mm
Function	Low beam/High beam and low beam are illuminated at the same time

Product Description

Material: TMS control unit replacement is made of high quality materials, wear resistance, good performance, long service life
Easy Installation: Adaptive headlight drive control unit lighting module plug and play, no special knowledge needed, easy to replace.The headlight beam mode can be adjusted according to various conditions to improve driving safety and visibility
Warm Tip: If the dashboard displays an adaptive headlight malfunction, a new headlight module needs to be replaced to help the vehicle return to normal operation
