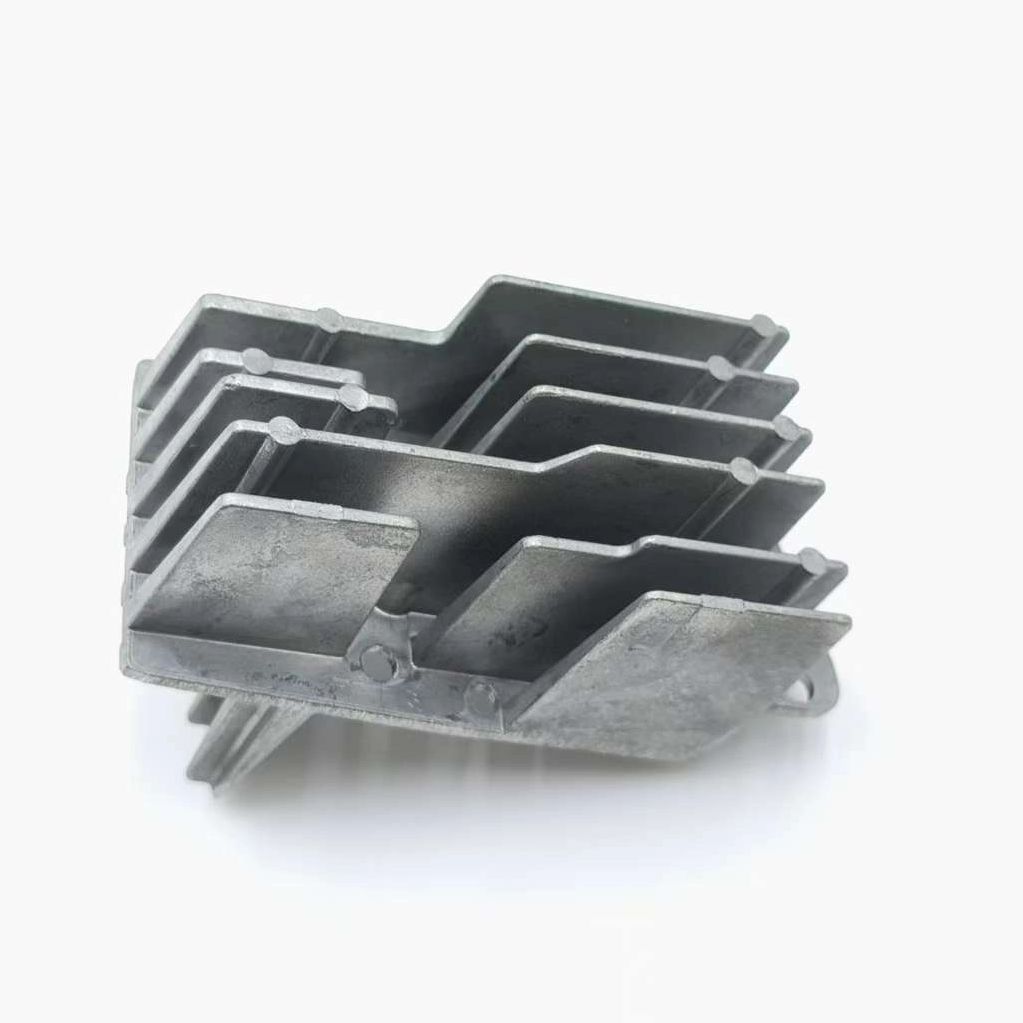

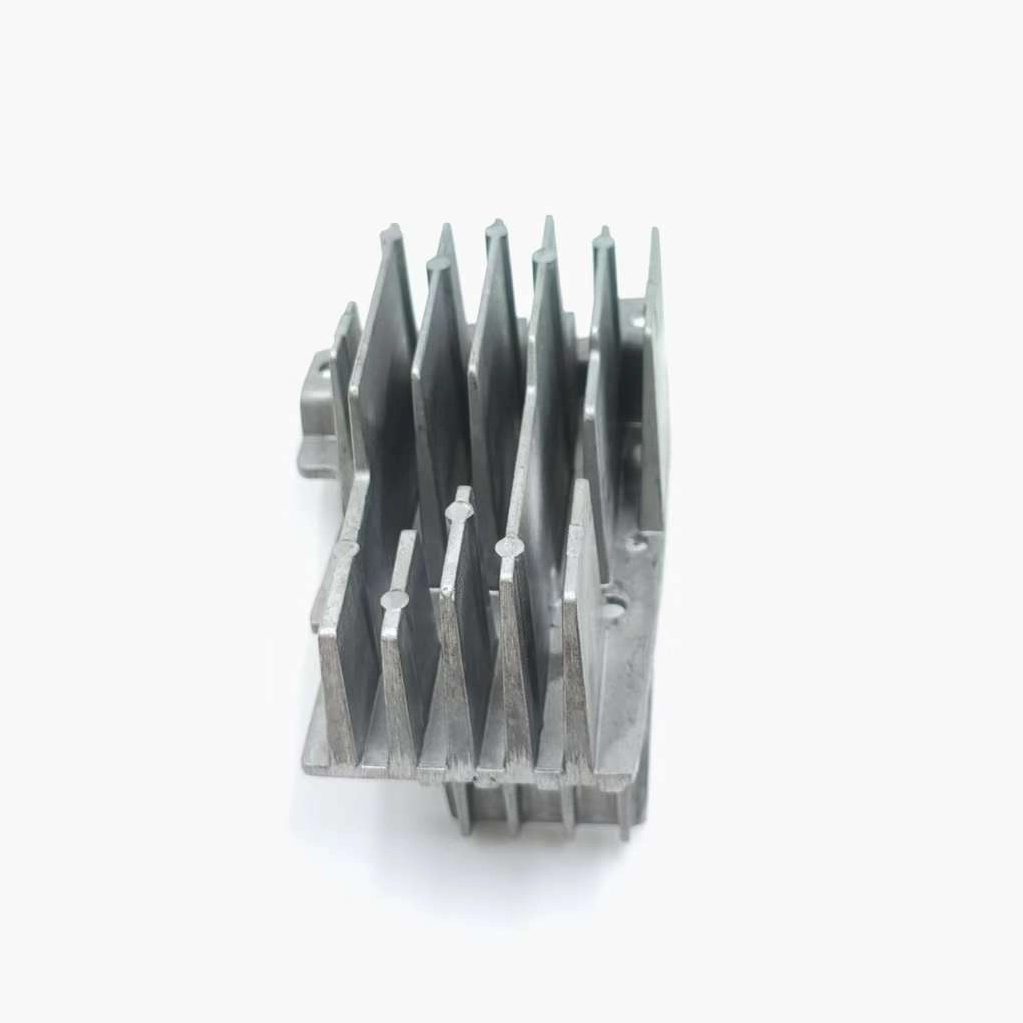

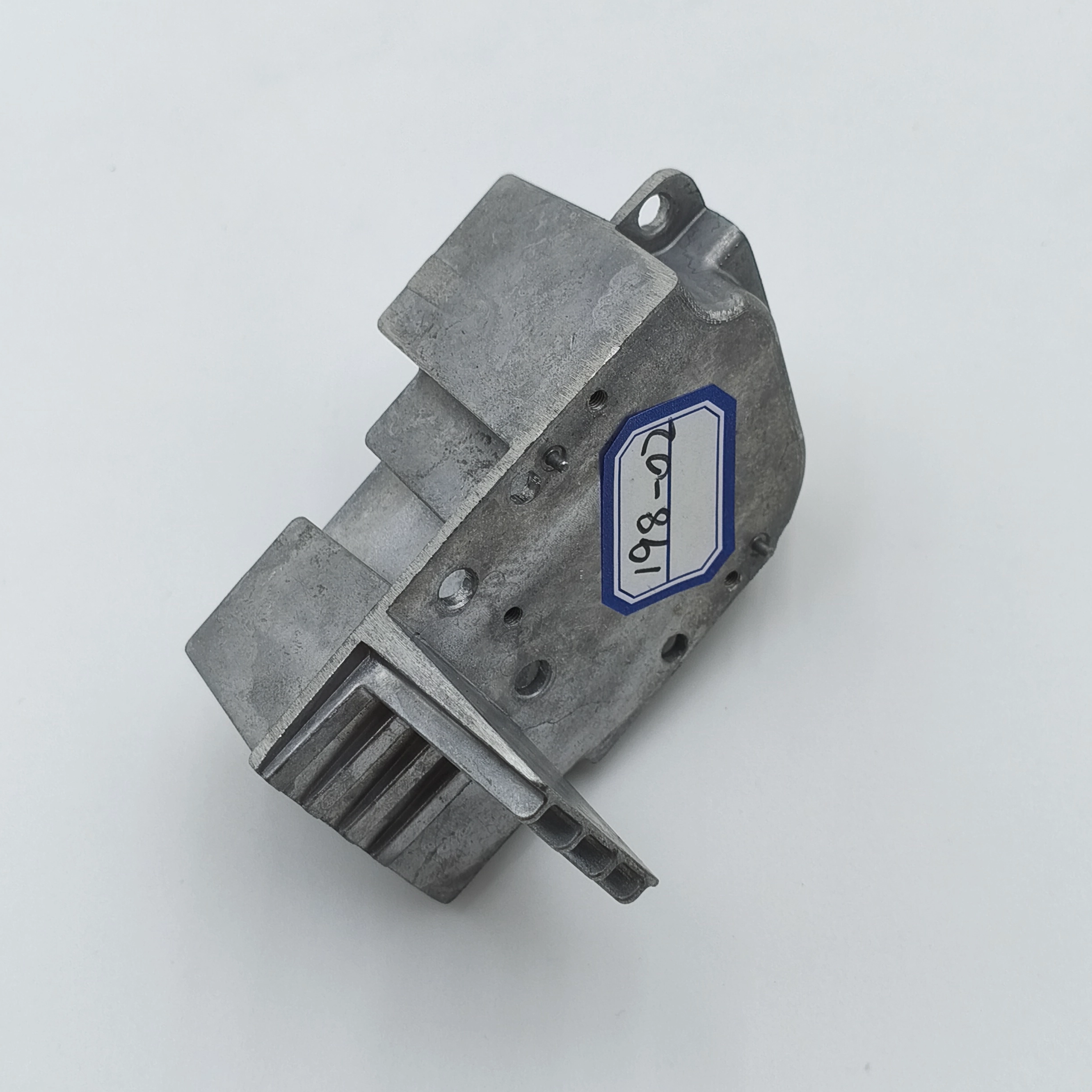

B1-198-1302L Heat Sink Aluminium for Projector Led Lens

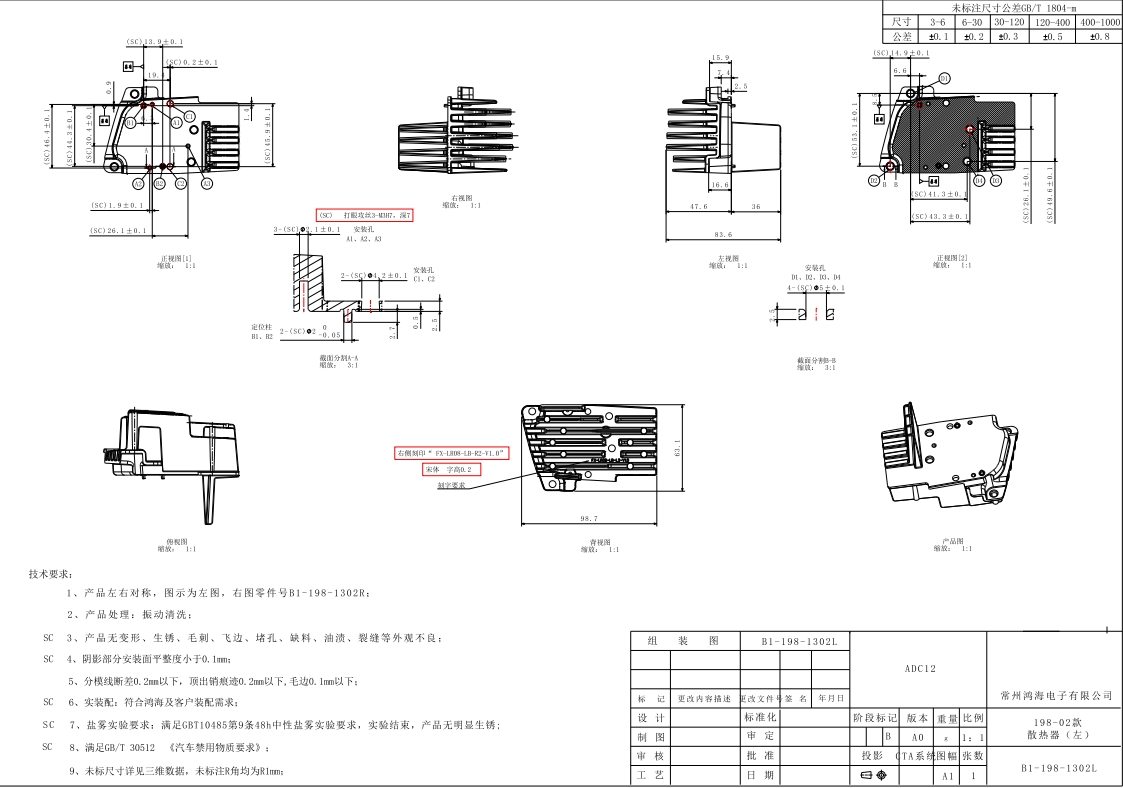

1. The product is symmetrical on both sides. The left picture is shown, and the part number in the right picture is B1-198-1302R. \ n2. Product treatment: Vibration cleaning. \ n3. The product has no appearance defects such as deformation, rust, burrs, flash, blocked holes, material shortage, oil stains, cracks, etc.

4. The flatness of the installation surface in the shaded area is less than 0.Imm. \ n5. The break difference of the parting line is less than 0.2mm, the ejector pin mark is less than 0.2mm, and the burrs are less than 0.imm. \ n6. Actual assembly: Meets the assembly requirements of Hon Hai and customers. \ n7. Salt spray test requirements

It meets the requirements of the 48-hour neutral salt spray test as stipulated in Article 9 of GBT10485. At the end of the test, the product is prone to rust without any clear indication.

8. Comply with GB/T 30512 "Requirements for Prohibited Substances in Automobiles" : 9. For unmarked dimensions, please refer to the three-dimensional data. The unmarked R corners are all R1mm
