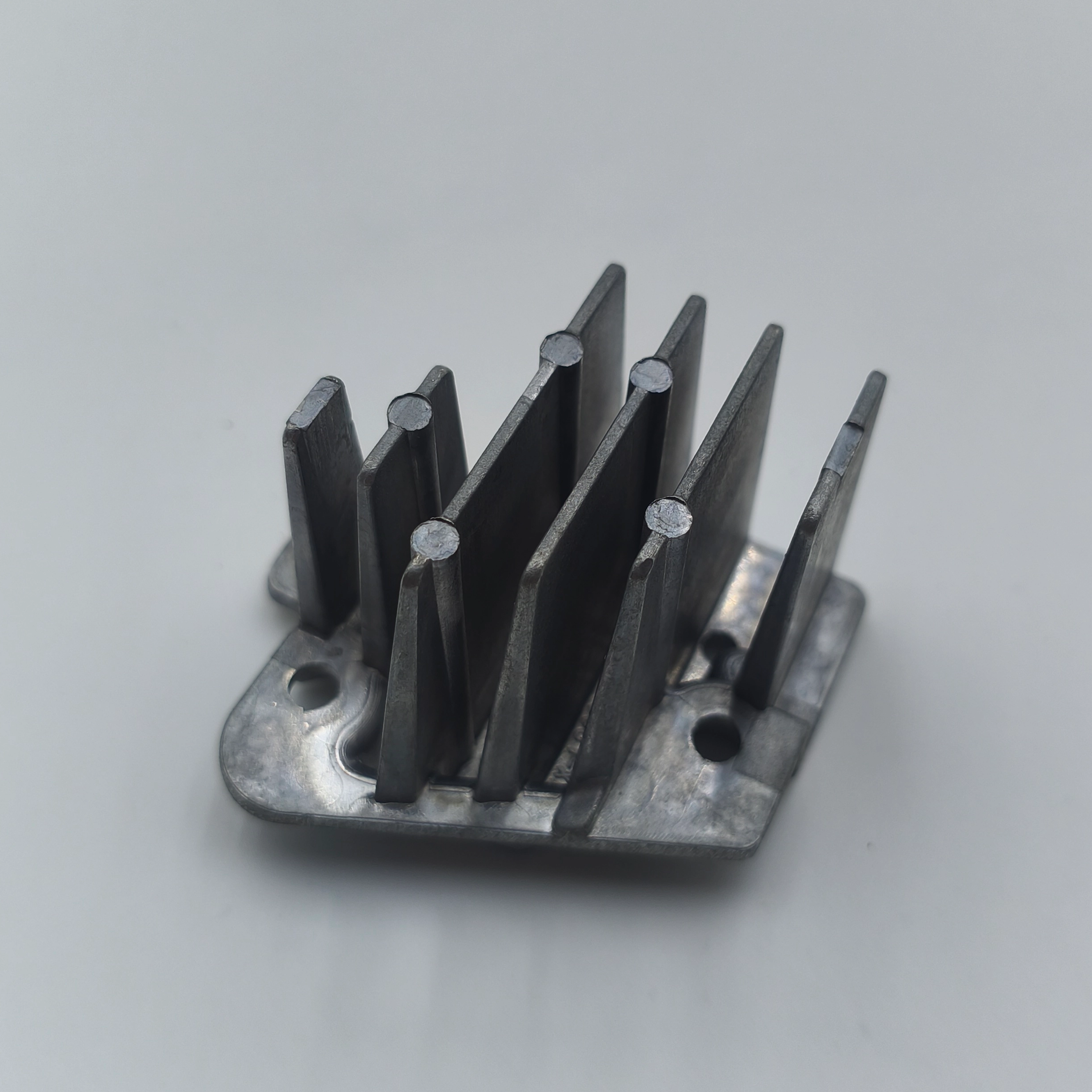

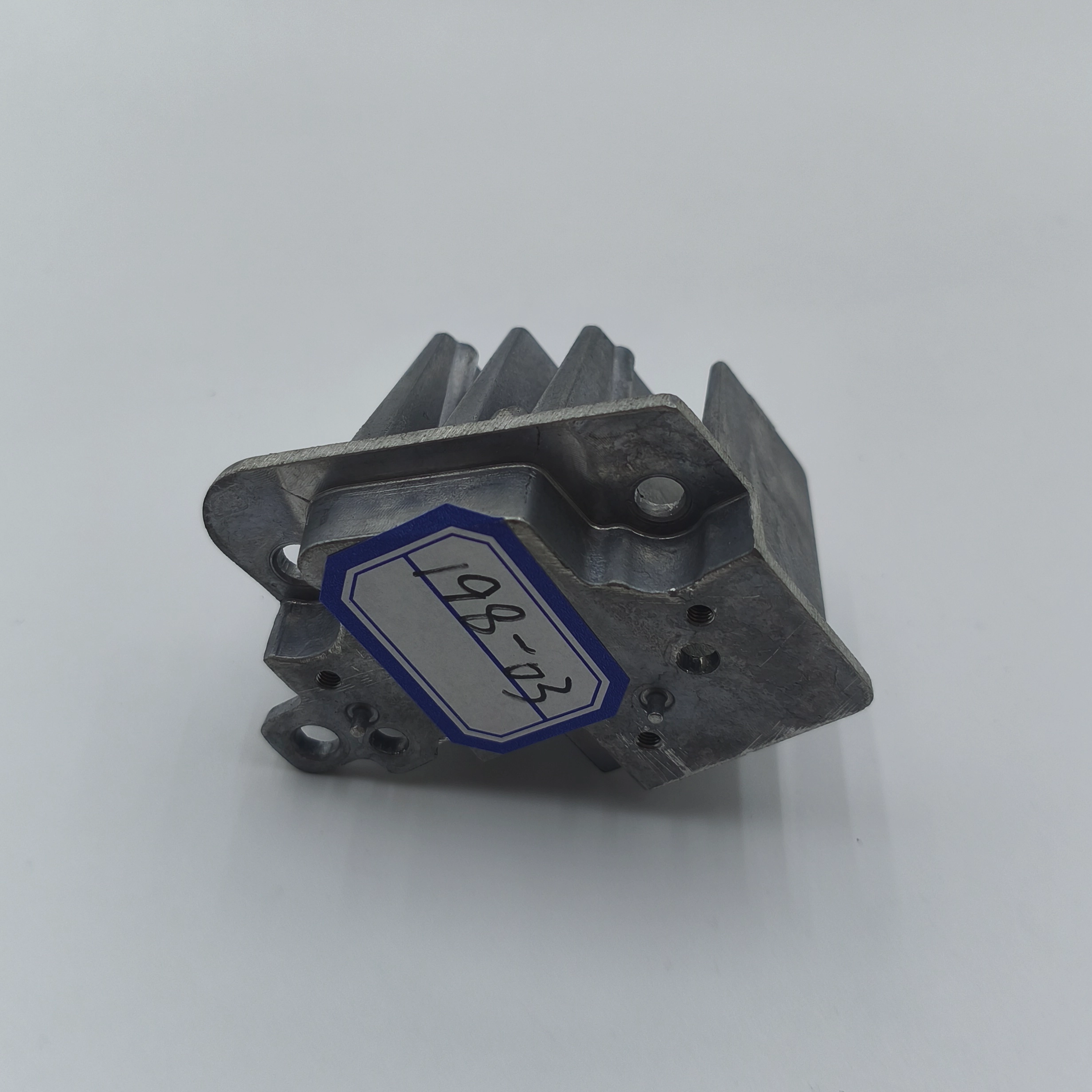

B1-198-1303L Heat Sink Aluminium for Projector Led Lens

1. The product is symmetrical on both sides. The illustration shows the left one, and the part number of the right one is BI-198-1303R2. \ n2. Product processing: Vibration cleaning;

3. The product has no appearance defects such as deformation, rust, burrs, flash, hole blockage, material shortage, oil stains, cracks, etc. \ n4. The flatness of the installation surface in the shadow part is less than 0.1mm. \ n5. The break difference of the parting line is less than 0.2m, the protruding laying mark is less than 0.2mm, and the burrs are less than 0.Imm. \ n6. Actual assembly: meets the assembly requirements of Hon Hai and customers. \ n7. Salt spray test requirements:

It meets the requirements of the 48-hour neutral salt spray test as stipulated in Article 9 of GBT10485. At the end of the test, there is no obvious rust on the product. 8. It meets the requirements of GB/T 30512 "Prohibited Substances for Automobiles". 9. For unmarked dimensions, please refer to the three-dimensional data. All unmarked R corners are RInm
